DW-PT/P

DW-PT/B

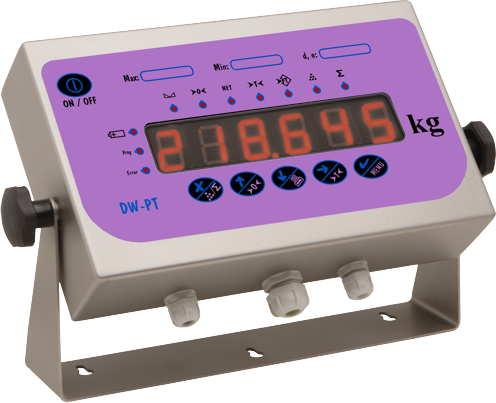

DW-PT and DW-PT/X





FEATURES

• Precision class: III - 6000d concerning EN45501 / OIML R76 (T.C: CEM-CY-05/0422-5.2).
• Load Cell Input with a 24 bits A/D Sigma-Delta converter.
• Enhanced protection against EMI (Electromagnetic interferences)
• 7 Segments Display of 6 Digits.
• 14 Led show the state of the indicator
• 1 Serial Port RS232C to communicate with PC, Printers or Remote displays.
• ON / OFF Key on the keyboard.
• 5 Keys Keyboard to use and program the controller.
• Electronic and mechanical seal.
• Standard or configurable ticket through PC Utility.
• Indicator with mV pre-calibration.
• Power Supply: 12Vdc / 220Vac
• 200 x 120 x 60mm stainless steel enclosure.

OPERATING MODES

• Weight-Tare: Allow to display the weight of a scale, apply tares, untare and program fixed tares.
• Pieces Counter: Allow to count pieces.
• Accumulator: Allow to accumulate weights and number of weights.
• Transmitter: Allows to send load cell signals through RS232 or RS485 to any device.



Configuration Utility of the
weight indicator from any PC

OPTIONS

• one RS485 serial port.
• 2nd RS232 serial port.
• Ethernet 10/100M Base T communication port.
• WIFI communication port.
• USB 2.0 communication port.
• Time and date.
• Wall, column or table mount.
• IP65 water proof with connectors.

APPLICATIONS

• Simple weight.
• On-Board weighing of movable equipment.
• Truck weighing through PC.



* All information presented herein is subject to change without notice.
